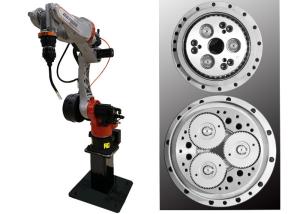

RV-50C RV Gear Reducer Cyclo Drive Reducer For Industrial Robots ISO9001
The rv gear reducer is also known as a cycloidal pinion planetary gear drive, its core components are the pin housing, the crank shaft and the cycloidal wheel.
The rv reduction gearbox is composed of an involute cylindrical gear planetary reduction mechanism and a cycloidal pinion planetary reduction mechanism. The involute planetary gear is integrated with the crankshaft as an input of the cycloidal pinion transmission part, and the crankshaft drives the cycloidal wheel is eccentrically moved, the crank rotates clockwise in a clockwise direction, and the cycloidal wheel moves one tooth in the counterclockwise direction.
Industrial robots usually perform repetitive actions to complete the same process; in order to ensure that industrial robots can reliably perform process tasks in production and ensure process quality, the positioning accuracy and repeat positioning accuracy of industrial robots are very high. Therefore, to improve and ensure the accuracy of industrial robots requires the use of RV reducers or harmonic reducers. Another role of precision reducers in industrial robots is to deliver more torque. When the load is large, it is not cost - effective to increase the power of the servo motor. The output torque can be increased by the reducer in a suitable speed range.
Features of Rv Gear Reducer RV-50C -32.54
1. Less than 1 arc - min Backlash.
2. Strong impact resistance.
3. Very compact with high torsional rigidity.
4. Component in - line version for greater design and space saving flexibility.
5. Large transmission ratio range.
6. High transmission efficiency.
7. Long working life.
Application of Rv Gear Reducer RV-50C -32.54
High - end intelligent equipment industry such as industrial robots, external shafts, precision machine tools, radars, and medical devices.
Rv Gear Reducer RV-50C -32.54 technical Parameters
Operating parameter
Output Rotational speed
r/min | 5 | 15 | 25 | 35 |
| Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity | Output torque | Input capacity |
| Model | Nm | kW | Nm | kW | Nm | kW | Nm | kW |
| 50C | 680 | 0.48 | 490 | 1.03 | 420 | 1.47 | 375 | 1.57 |
Note: the rated torque is the output torque when the output speed is at 15r/min.
Performance Parameter
| Model | Speed ratio | Allowable output speed | Maximum backlash | Allowable acceleration/decleration torque | Momentary max allowable torque | Allowable moment | Momentary max allowable movement | Weight | Efficiency | Noise |
| 50C | Reduction gear unit
Speed ratio value | r/min | arc.min | Nm | Nm | Nm | Nm | kg | % | dB |
| 32.54 | 50 | 1 | 1225 | 2450 | 1760 | 3500 | 15 | >80 | <75 |
Rv Gear Reducer RV-50C -32.54 installation parameter
inner hexagon bolt
Nominal dimension(mm) | fastening torque(Nm) | fastening force | bolt requirement |
| M10 × 1.5 | 73.5 ± 3.43 | 38080 | GB/T 70.1 - 2000
intensity:12.9
thread requirement:GB/T 1167-1996 |
Rv Gear Reducer RV-50C -32.54 installation drawings
